GL-CHAMPION

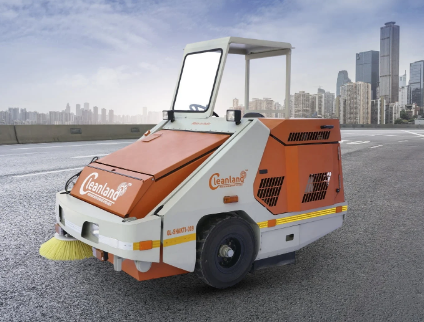

Diesel Operated Heavy Duty Industrial Ride on Sweeper
Ideal for large area Sweeping
High Capacity Hopper and Efficient Filtering System
Maximum Cleaning Productivity with a Wide Sweeping Path
Robust Built for Harsh Environment
Overhead Guard for Operater Safety
Two Speed Option Normal & Power Speed
Headlamps for Safe Operation in Low Lit Areas
Heavy Duty Hydraulic System for Both Machine Function and Driving
Rear view mirror, reverse horn and tail lamps are fitted as standard accessory for operator convenience and safety
|
SPECIFICATIONS
|
||
|---|---|---|
|
Machine Weight
|
1660 Kg
|
|
|
Machine Dimension (L x W x H)
|
2560 x 1630 x 2010 mm
|
|
|
Main Broom
|
1219 mm
|
|
|
Side Broom
|
558 mm
|
|
|
Sweeping Width
|
1523 mm
|
|
|
Sweeping Productivity
|
184000 sq.ft./hr.
|
|
|
Speed
|
15 Km/hr
|
|
|
Hopper Dust Load Capacity
|
480 Kg.
|
|
|

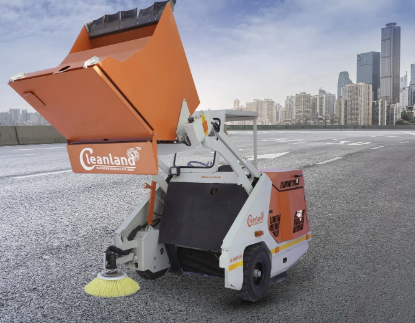

Hopper Emptying Height Upto
|
1560 mm
|
|
|
Engine Power Output
|
28.8 kw@3000 RPM
|
|
|
Drive Cabin
|
Roof Type
|
|
|
Operating System
|
Hydraulic
|
|
Key Features:
Diesel Operated with 35 HP Mitsubishi Engine
600 Litre Dust Load Capacity
Sweeping Efficiency up to 17,095 m²/hr
Hydraulic Drive & Broom Operation for smooth and efficient performance
Gradability: 18% – reliable on slopes, ramps, and uneven terrain
High-Efficiency Filter System for superior dust control
Recommended For:
Residential Societies
Large Parking Areas
Industrial Campuses
Warehouses
Municipal Walkways
